■ [作業履歴][unity]カメラ・デプステクスチャ関連
カメラをスクリプトから制御することで、デプステクスチャや、デプスと法線をセットで焼きこんだものが生成できる
Camera.depthTextureMode 変数を使って、カメラのDepth Textureをスクリプトから有効にすることが出来ます。
二つの使用可能なデプステクスチャモードがあります:
•DepthTextureMode.Depth: Depth Texture です。
•DepthTextureMode.DepthNormals: デプスおよびビュー空間法線がひとつのテクスチャにパックされています。
UnityCG.cginc include file にはヘルパー関数DecodeDepthNormal があり、デプスおよび法線をエンコードされたピクセルの値よりデコードします。戻されるデプスは0から1の範囲です。
デプスや法線テクスチャの使用方法については、Shader Replacementのサンプルプロジェクトのエッジ検出イメージエフェクトあるいはSSAO Image Effect を参照して下さい。
Shader上で深度値を取得する方法
・Shader上の処理
深度バッファ値を格納してあるテクスチャー情報を取得する。
そのためには以下のようにShader用のグローバルな固定変数がある
sampler2D _CameraDepthTexture;
sampler2D _CameraDepthNormalsTexture;
■ [作業履歴][unity]ポストフィルタ関連
ポストフィルタの最小のサンプルに近いものは、Edge Ditection(Color)
ソースも短いので読みやすい
これとSSAOを合わせて読めば、だいたいのフィルタは書けそう
基本はImageEffectBaseクラスを継承して、シェーダーを割り当てるだけ。割り当てるシェーダーはデフォルトのものでも通る。
SSAOのスクリプトより
[ExecuteInEditMode]
[RequireComponent (typeof(Camera))]
[AddComponentMenu("Image Effects/Screen Space Ambient Occlusion")]
EditModeでも動く、Cameraコンポーネントを自動で取得、メニューに追加

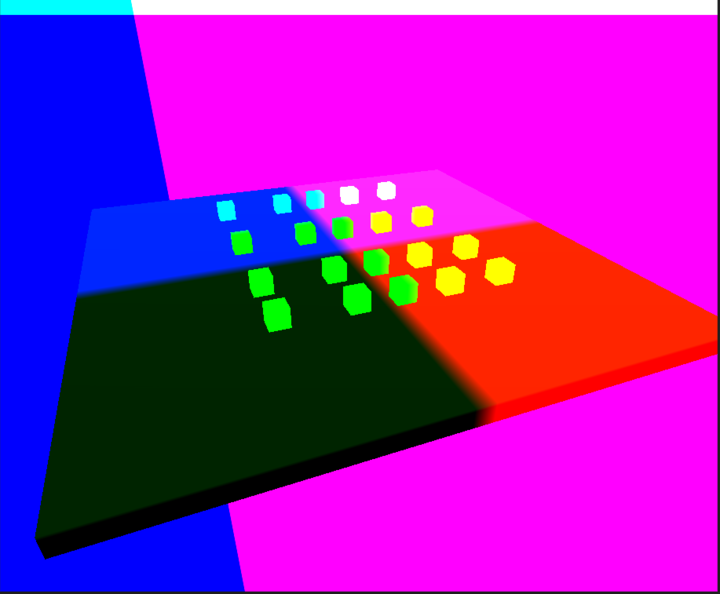

GlobalFogを参考に、とりあえずデプスからワールド座標を再計算
using UnityEngine;
using System.Collections;
[ExecuteInEditMode]
[RequireComponent (typeof(Camera))]
public class TestFilter : ImageEffectBase {
public float threshold = 0.2F;
private float CAMERA_NEAR = 0.5f;
private float CAMERA_FAR = 50.0f;
private float CAMERA_FOV = 60.0f;
private float CAMERA_ASPECT_RATIO = 1.333333f;
void OnEnable () {
camera.depthTextureMode |= DepthTextureMode.Depth;
camera.depthTextureMode |= DepthTextureMode.DepthNormals;
}
// Called by camera to apply image effect
void OnRenderImage (RenderTexture source, RenderTexture destination)
{
CAMERA_NEAR = camera.nearClipPlane;
CAMERA_FAR = camera.farClipPlane;
CAMERA_FOV = camera.fieldOfView;
CAMERA_ASPECT_RATIO = camera.aspect;
Matrix4x4 frustumCorners = Matrix4x4.identity;
float fovWHalf = CAMERA_FOV * 0.5f;
Vector3 toRight = camera.transform.right * CAMERA_NEAR * Mathf.Tan (fovWHalf * Mathf.Deg2Rad) * CAMERA_ASPECT_RATIO;
Vector3 toTop = camera.transform.up * CAMERA_NEAR * Mathf.Tan (fovWHalf * Mathf.Deg2Rad);
Vector3 topLeft = (camera.transform.forward * CAMERA_NEAR - toRight + toTop);
float CAMERA_SCALE = topLeft.magnitude * CAMERA_FAR/CAMERA_NEAR;
topLeft.Normalize();
topLeft *= CAMERA_SCALE;
Vector3 topRight = (camera.transform.forward * CAMERA_NEAR + toRight + toTop);
topRight.Normalize();
topRight *= CAMERA_SCALE;
Vector3 bottomRight = (camera.transform.forward * CAMERA_NEAR + toRight - toTop);
bottomRight.Normalize();
bottomRight *= CAMERA_SCALE;
Vector3 bottomLeft = (camera.transform.forward * CAMERA_NEAR - toRight - toTop);
bottomLeft.Normalize();
bottomLeft *= CAMERA_SCALE;
frustumCorners.SetRow (0, topLeft);
frustumCorners.SetRow (1, topRight);
frustumCorners.SetRow (2, bottomRight);
frustumCorners.SetRow (3, bottomLeft);
material.SetMatrix ("_FrustumCornersWS", frustumCorners);
material.SetVector ("_CameraWS", camera.transform.position);
material.SetFloat ("_Treshold", threshold * threshold);
Graphics.Blit (source, destination, material);
}
}
hader "Custom/TestShader" {
Properties {
_MainTex ("Base (RGB)", 2D) = "white" {}
_Treshold ("Treshold", Float) = 0.2
}
SubShader {
Pass {
ZTest Always Cull Off ZWrite Off
Fog { Mode off }
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
#pragma fragmentoption ARB_precision_hint_fastest
#include "UnityCG.cginc"
uniform sampler2D _MainTex;
sampler2D _CameraDepthNormalsTexture;
uniform sampler2D _CameraDepthTexture;
uniform float4 _MainTex_TexelSize;
uniform float _Treshold;
// for fast world space reconstruction
uniform float4x4 _FrustumCornersWS;
uniform float4 _CameraWS;
struct v2f {
float4 pos : POSITION;
float2 uv : TEXCOORD0;
float2 uv_depth : TEXCOORD1;
float4 interpolatedRay : TEXCOORD2;
};
v2f vert( appdata_img v )
{
v2f o;
half index = v.vertex.z;
v.vertex.z = 0.1;
o.pos = mul(UNITY_MATRIX_MVP, v.vertex);
o.uv = v.texcoord.xy;
o.uv_depth = v.texcoord.xy;
#if UNITY_UV_STARTS_AT_TOP
if (_MainTex_TexelSize.y < 0)
o.uv.y = 1-o.uv.y;
#endif
if( v.vertex.x == 0 && v.vertex.y == 0 ) {
o.interpolatedRay = _FrustumCornersWS[3];
}else if( v.vertex.x == 1 && v.vertex.y == 0 ) {
o.interpolatedRay = _FrustumCornersWS[2];
}else if( v.vertex.x == 1 && v.vertex.y == 1 ) {
o.interpolatedRay = _FrustumCornersWS[1];
}else if( v.vertex.x == 0 && v.vertex.y == 1 ) {
o.interpolatedRay = _FrustumCornersWS[0];
}
//o.interpolatedRay = _FrustumCornersWS[(int)index];
o.interpolatedRay.w = index;
return o;
}
half4 frag (v2f i) : COLOR
{
//half4 original = tex2D(_MainTex, i.uv);
//return original;
half4 sample1 = tex2D(_CameraDepthNormalsTexture, i.uv.xy);
float depth = Linear01Depth(UNITY_SAMPLE_DEPTH(tex2D(_CameraDepthTexture,i.uv)));
float4 wsDir = depth * i.interpolatedRay;
float4 wsPos = _CameraWS + wsDir;
return float4( wsPos.xyz, 1 );
}
ENDCG
}
}
}
■
